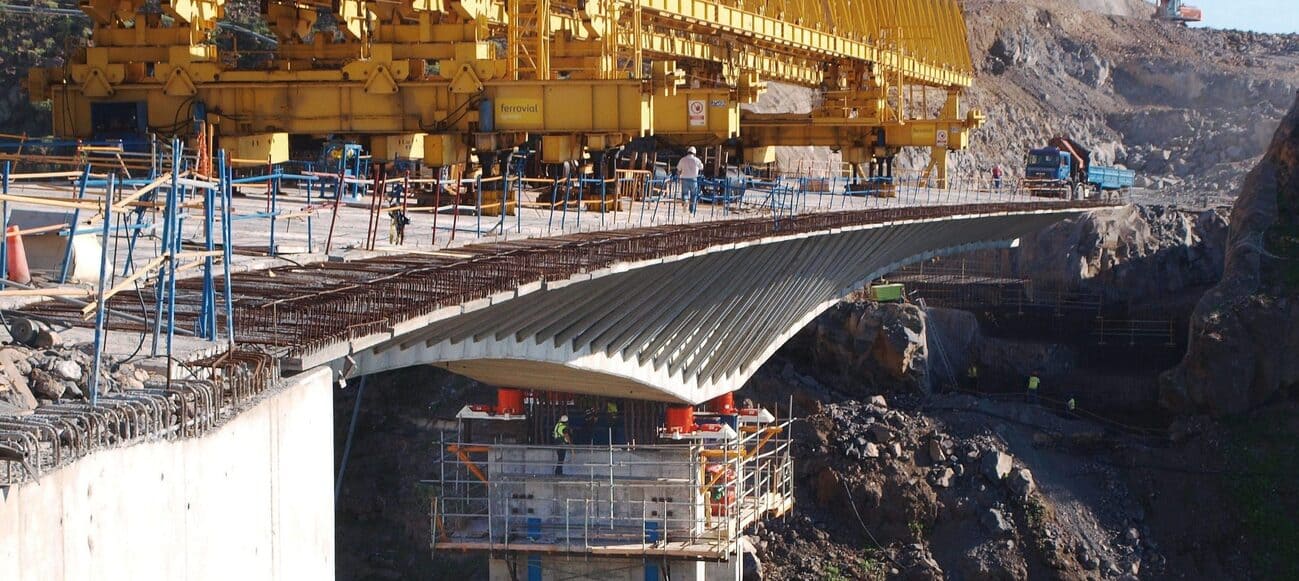

EQUIPO PARA NIVELACIÓN DE TABLEROS 4x1.750 TON CON CILINDROS DE EMPUJE LATERAL 175 TON CARRERA: 150mm 700 BAR

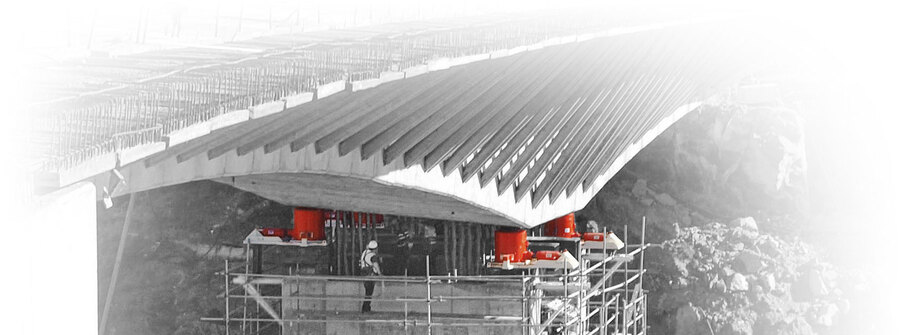

4×1.750 T leveling device for bridge-deck with 175 T lateral thrust hydraulic cylinders. Stroke: 150 mm 700 BAR.

Big hydraulic cylinders | Special works

Big hydraulic cylinders designed and manufactured by Ferjovi have been subjected to extreme conditions and mechanical stresses on oil platforms, in mining, mineral processing, hydro dams, civil construction … responding to the highest demands in safety, corrosion endurance and heavy-duty operations.

Manufacturing of these XL type cylinders is strengthened by a refurbishing post sales service, development kits and accessories attended by the same teams which manage the projects ensuring an early solution and timely delivery.





32nr high capacity single actin-lock nut hydraulic jacks: 12nr 400 ton - 300mm jacks, 4nr 400 ton -150mm jacks, 4nr 520 ton – 45mm jacks and 12nr 300 ton – 150mm jacks.

AVN Jacking Down Operation  Jacking down operation required to get a bridge deck ready for the upcoming launch.The weight of the structure is 5.631 tonnes.

The  operation involved the use of 32nr high capacity single actin-lock nut hydraulic jacks: 12nr 400 tonne – 300mm jacks, 4nr 400 tonne -150mm jacks, 4nr 520 tonne – 45mm jacks and 12nr 300 tonne – 150mm jacks.

Grandes cilindros hidráulicos con centrales de control hidráulicas

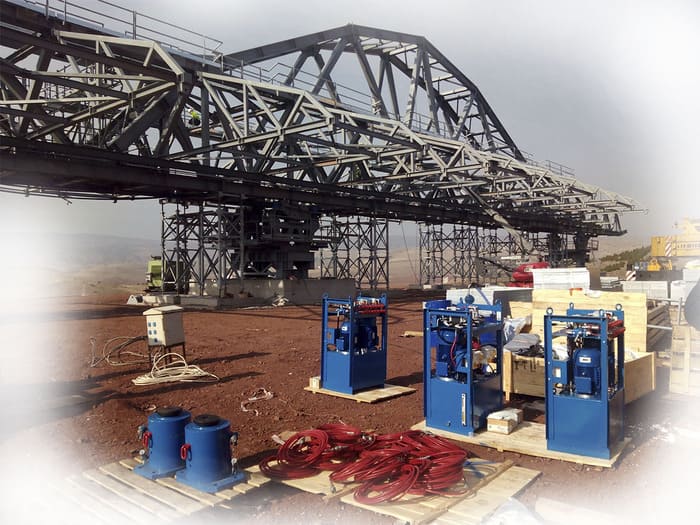

 Big hydraulics cylinders and hydraulics cylinders control units. AVE Ankara-Turkia

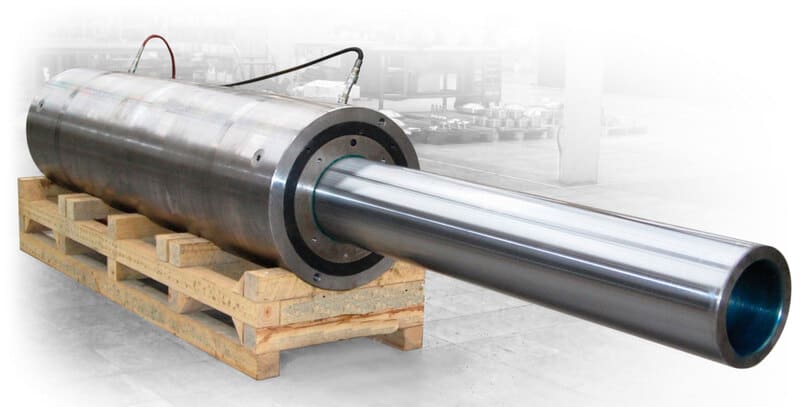

CILINDRO-1800mm-CARRERA-DOBLE-EFECTO-1000-TON

                 Big hydraulic cylinder, 1.800 mm stroke, double acting. 1000 T.

PRETENSADO-DE-PUENTES-CILINDROS-CON-TUERCA-DE-SEGURIDAD-500-TON

     Bridge-deck prestresing with 500 T safety lock nut cylinders.

Puente1-Equipo-para-nivelación-de-tableros-4x1

                           4×1.750 T leveling device for bridge-deck with 175 T lateral thrust hydraulic cylinders. Stroke: 150 mm 700 BAR.

tuneladora1-CILINDROS-ESPECIALES-PARA-TUNELADORAS

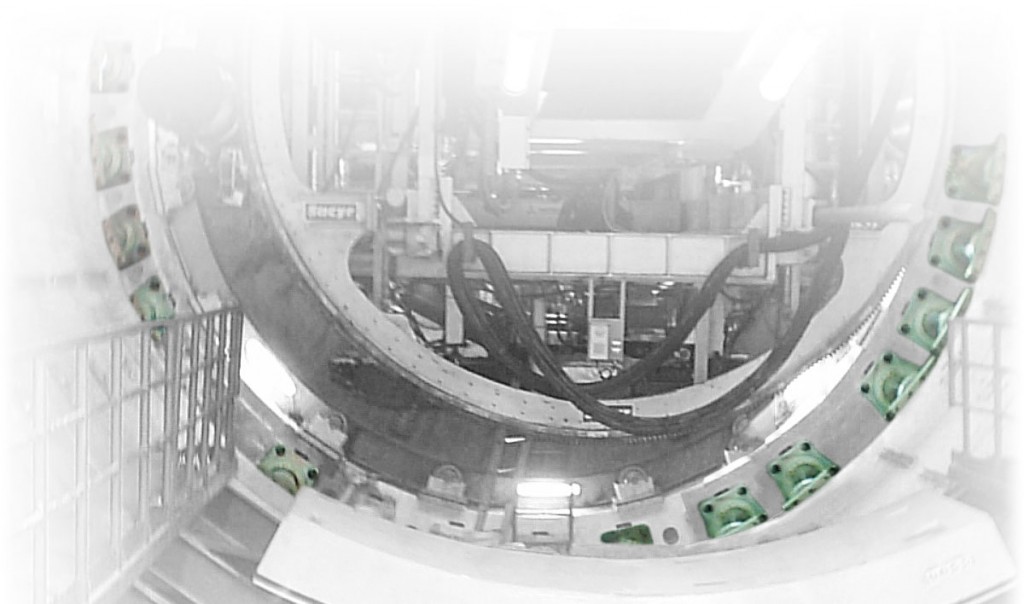

Special cylinders for tunnel boring machines.

FERJOVI-biaxial-testing

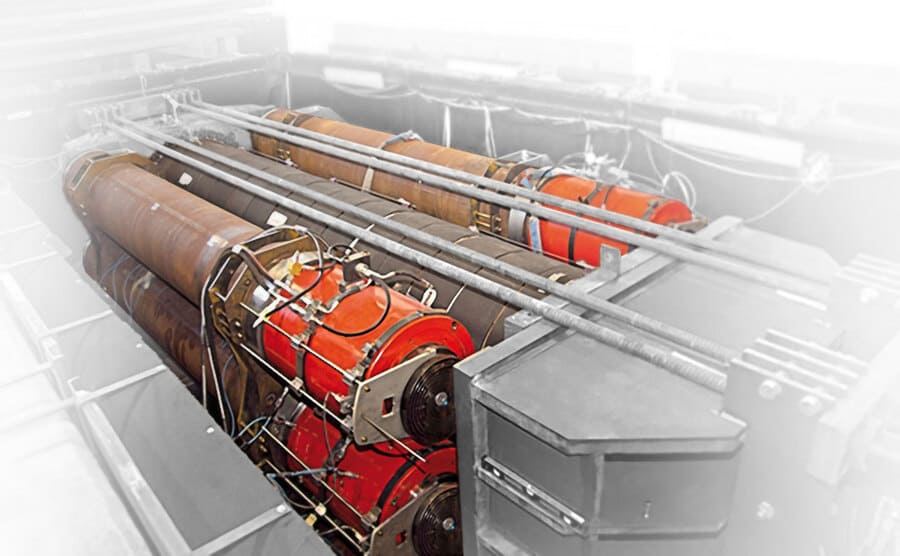

Testing equipment. 2.000 T hydraulic cylinders set.



Hollow-Hidraulic-CylinderS-CILINDROS-CON-TUERCA-DE-SEGURIDAD-500-TON

Big safety lock nut hydraulic cylinders. 500 T.



hidro2-SERVO-MOTOR-HIDRAULICO-1024px

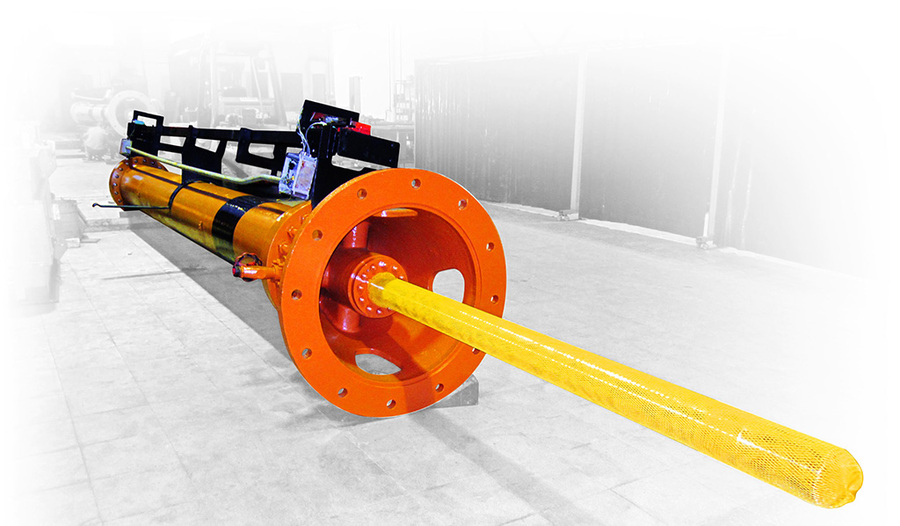

Hydraulic servo unit for gates operating 450/130×5.328



FERJOVI-4-CILINDROS-1300mm-CARRERA-DOBLE-EFECTO-TUERCA-SEGURIDAD-605-TON

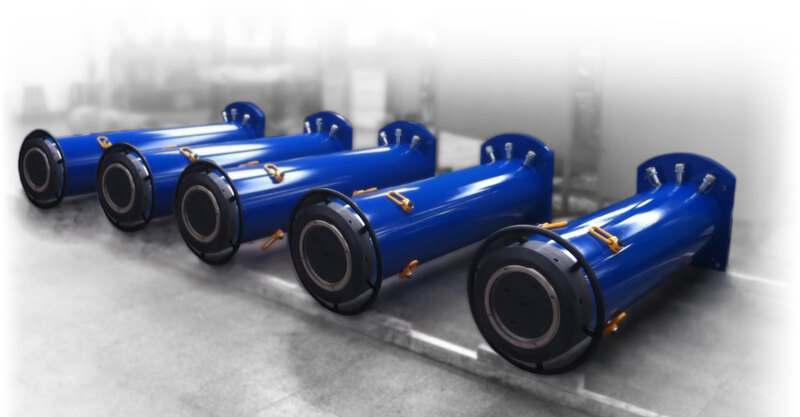

     Big hydraulic cylinders, 1.300 mm stroke, doublé acting and safety lock nut. 605 T.



FERJOVI-8-HIDROELÉCTRICAS-SERVOCONTROLES-PARA-TURBINA-500180X1050

                 Hidroelectric power generation. Servo control of turbine 500/180×1050

PUENTE-DE-LA-BAHÍA-DE-CÁDIZ---EQUIPO-TRIAXIAL-PARA-POSICIONAMIENTO-DE-TABLEROS,-CON-PRECISION-MILIMÉTRICA-Y-TUERCA-DE-SEGURIDAD

       Positioning of deck dovel, milimiter precision on three axis and safety lock nut.
